Product Description

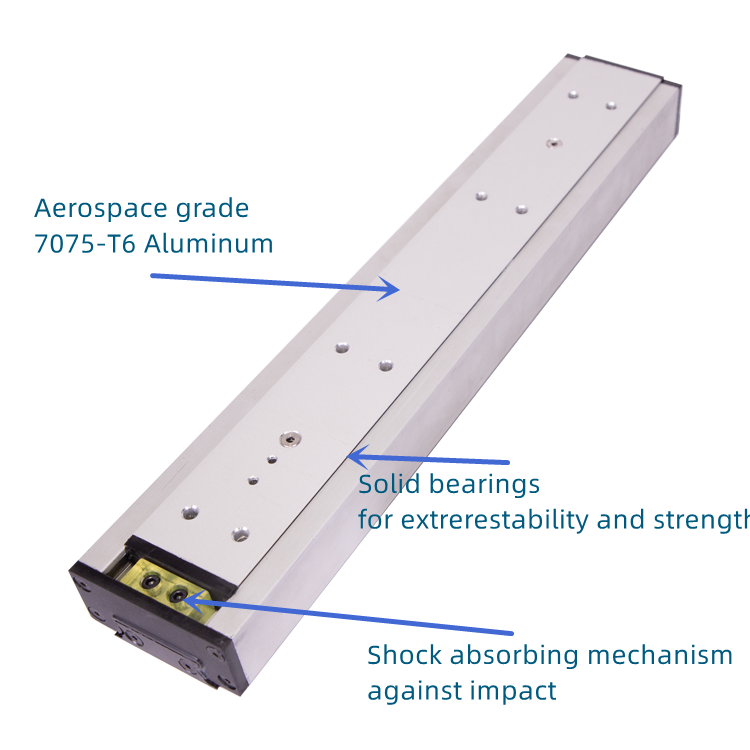

Aluminum Alloy Heavy Duty Slide Rail Showcase 1
Aluminum Alloy Heavy Duty Slide Rail Showcase 2
Aluminum Alloy Heavy Duty Slide Rail Showcase 3
Aluminum Alloy Heavy Duty Slide Rail Showcase 4
Aluminum Alloy Heavy Duty Slide Rail Showcase 5
Aluminum Alloy Heavy Duty Slide Rail Showcase 6
Product Specifications
Product Name Aluminum Alloy Heavy Duty Slides
Height 70 MM
Max Loading 500 KG
Travel 100%
Size Options 20'' ~ 80''
Cross Section 46 MM
Mounting Type Side Mounted
Product Dimensions & Load Capacity Details
Dimensions Chart
Structure Performance Spec
Mounting Mechanism Details
Cross Section Profile Details
Product Application Display

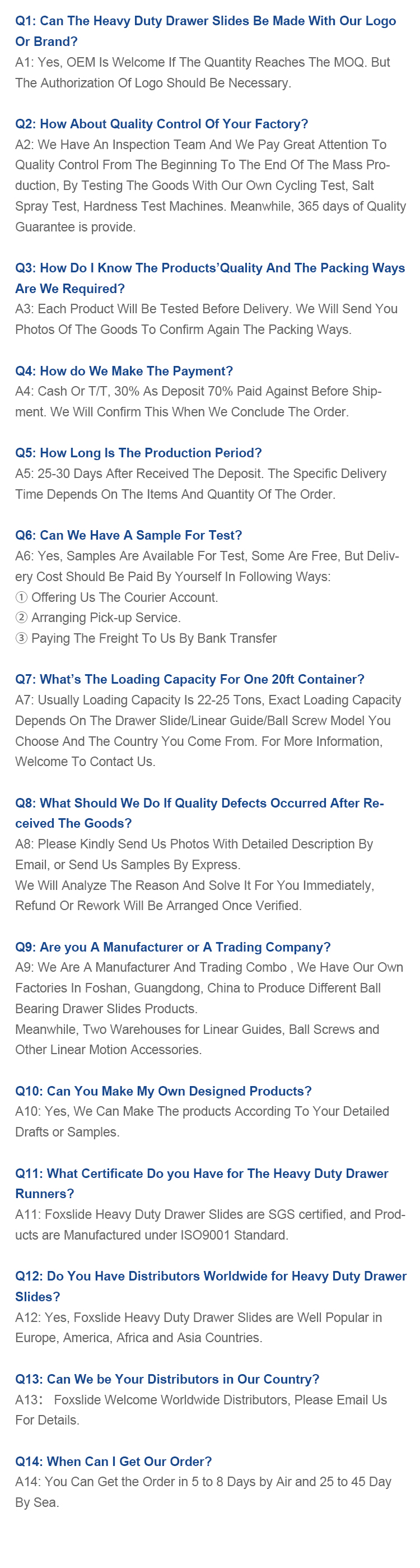

Frequently Asked Questions
What is the load rating of these heavy-duty slides?
These aluminum alloy heavy-duty slides are designed to handle a maximum load capacity of up to 500 KG, ensuring excellent stability and smooth operation under heavy loads.
What lengths are available for the slides?
We offer multiple size options ranging from 20 inches to 80 inches. This wide size range accommodates various drawer depths and industrial structural requirements.
Do these slides provide full drawer access?
Yes, the slides feature 100% full extension travel. The slide components pull out fully, allowing complete and unobstructed access to the entire interior space of your drawer or platform.
What are the cross-section and height dimensions?
These heavy-duty slides are manufactured with a height profile of 70 MM and a cross-section width of 46 MM to maintain optimal load bearing integrity.
How should these slide rails be mounted?
These slides are engineered specifically for side-mounted installation. Side mounting ensures the loads are transferred directly through the vertical walls of the drawer cabinet frame.
